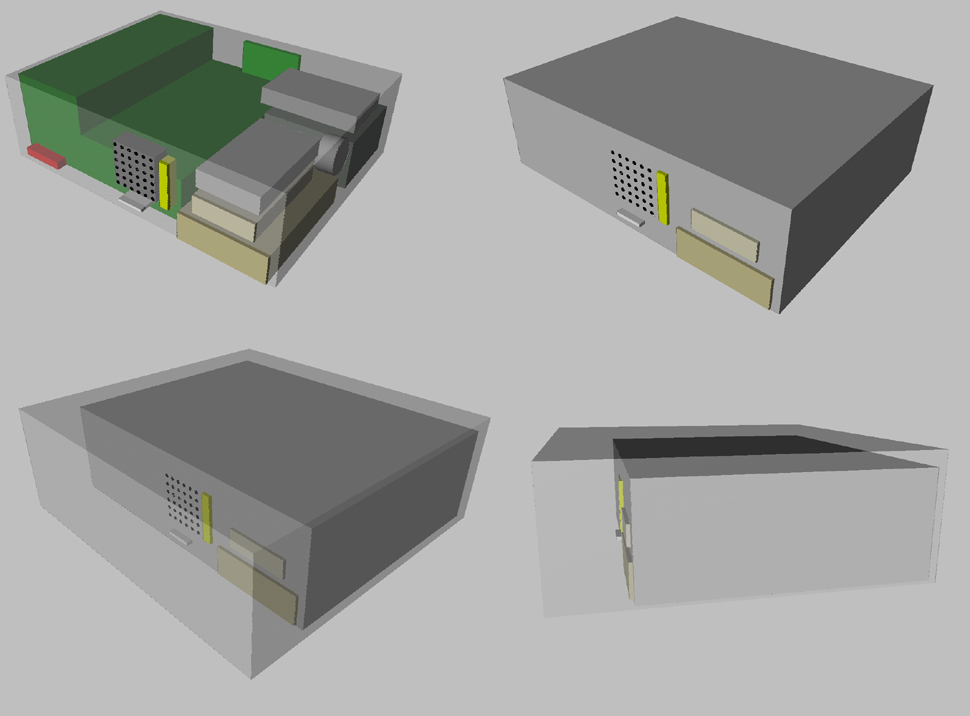

Description: This is a rough concept of how much smaller the new case can be, compared to the original A4KT case (ghosted). Note that the CD and floppy faceplates will be changed for silver ones, and the LED block may be positioned elsewhere. The case isn't the final design, I just had to make something to show which devices are accessible externally (CD, floppy and CF card). The main thing here it to show the arrangement of components to save space.
Picture Stats: Views: 1968 Filesize: 158.7kB Height: 768 Width: 1024 Posted by: X-ray at December 02, 2005, 05:57:04 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| X-ray Posts:4370
| December 03, 2005, 07:45:35 AM I would probably just make the one and see how good it is. Whatever happens I will supply the DXF to any interested members (it will probably be cheaper for them to select materials and have the plates cut locally) |
| x56h34 Posts:2921 | December 03, 2005, 12:49:12 AM Is this case only intended to be made in one specimen, or would you make a few more for interested parties, for a fee of course? :-) |
