| X-ray's A4000T (D) Concept - Internals | ||
 |
||
| Previous Image | Next Image | ||
|

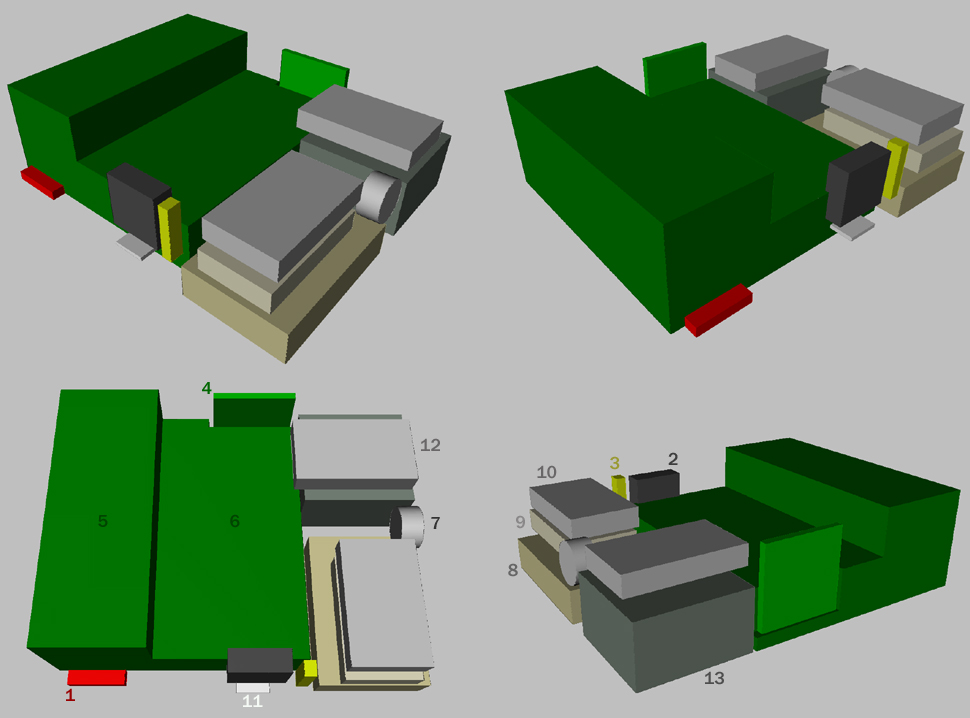

Description: This is just a rough concept of what I might do with my A4000T. Basically I want to turn it into a desktop. The advantages will be: smaller, lighter, better access to CPU...and a new case 'cos mine is battered and bruised. Component key: 1 = Lithium battery pack 2 = Case cooling fan (80mm) in line with CPU card 3 = LEDs and keylock 4 = Ports module, rotated and moved down 5 = Zorro cards (as if all were populated) 6 = Mobo and CPU area (as if fully populated) 7 = Internal speaker (may be on new mount) 8 = CDRW 9 = Floppy 10 = HD1 (attached to accelerator card SCSI) 11 = Compact Flash card (via IDE to CF adapter) 12 = HD2 (attached to disk module / onboard SCSI) 13 = PSU, rotated 90 degrees Picture Stats: Views: 2006 Filesize: 204.04kB Height: 768 Width: 1024 Posted by: X-ray at December 02, 2005, 04:36:33 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| weirdami Posts:3776 | November 23, 2008, 09:33:06 AM who needs an internal speaker anyway? |
| AMC258 Posts:877
| December 27, 2007, 02:40:59 AM I would expect it to cause more harm to the floppy drive than a hard drive. Granted, it should be ok, but I still wouldn't risk it. |
| X-ray Posts:4370
| May 29, 2006, 06:45:42 PM I doubt it will cause any harm, it will be between the back of the floppy drive and the psu. |
| Tricky Posts:127
| May 29, 2006, 05:15:39 PM Is it wise to put a speaker so close to the HD? |
| Dr_Righteous Posts:1345 | March 28, 2006, 05:22:22 AM Now this is an about face... Most of us are trying to towerize our A4000D's, you're trying to desktopize a tower?! |
