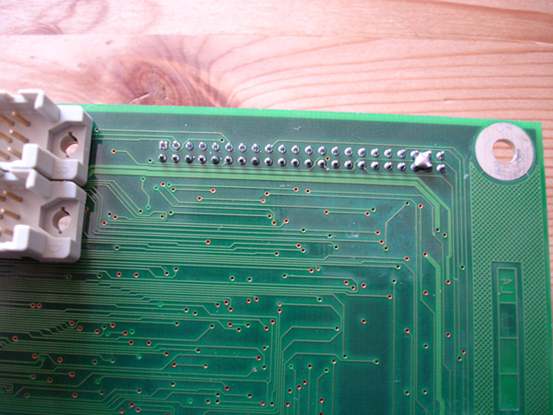

Description: Hi all. I've recently had som problems with my VS-Adapter. But figured it might have something to do with this.. As you can se 4 pins are soldered together on the back of the Video-Slot adapter port on the ZIV busboard. Any ideas? DOES YOU ZIV LOOK LIKE THIS?
Picture Stats: Views: 2784 Filesize: 255.54kB Height: 768 Width: 1024 Posted by: Leifern at August 31, 2005, 03:43:01 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| koaftder Posts:2116 | September 11, 2007, 12:47:21 AM Those 4 pins didn't get soldered together by accident. |
| weirdami Posts:3776 | September 22, 2006, 02:49:18 AM Was it working before, before it had problems and you poked around and found the solder? If it was, the solder might not have been the problem and while you were sucking it out (not because of), you inadvertently fixed the real problem. If that was a grounding deal, you might have a bigger problem later on with the solder removed. I guess the test would be to put the solder back on and see if it still works. As long as you don't unfix the thing you fixed on accident in the process. :-) |
| Leifern Posts:298 | September 04, 2005, 04:17:51 PM I removed the soldering connecting the four pins and everything worked fine.. The little {bleep} has been the cause of all my AmigaFrustrations.. If any of you guys see this on your ZIV, remove it.. :-P |
| Coolit Posts:267
| September 01, 2005, 06:57:02 PM I was thinking the same thing |
| PaSha Posts:537
| September 01, 2005, 04:26:20 PM Could it be four ground pins, perhaps? |
| Coolit Posts:267
| September 01, 2005, 01:51:00 PM To me this looks like some rework corrective action. But why would you want to join 4 tracks together? I'm interested to find out if others are like this also. |
