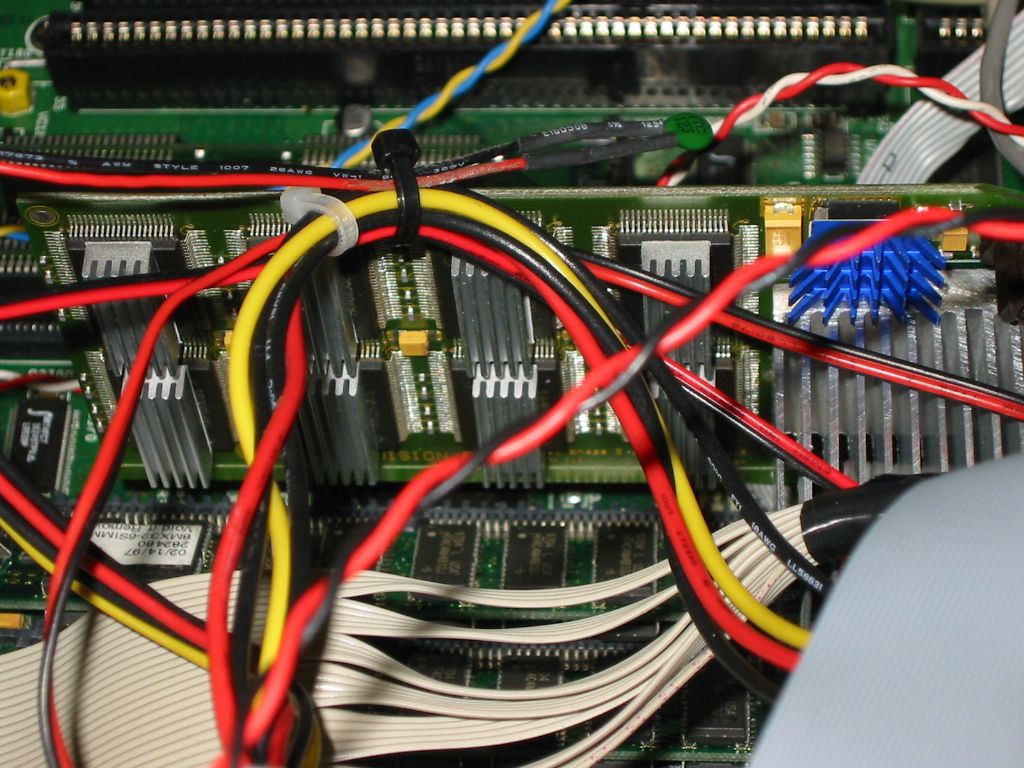

Description: My CV-PPC, with a few heatsinks attached. The really big one is a cut-down PC heatsink, glued on the pm2 chip with Arctic Alumina heatsink glue. The blue ones are meant for PC gfx card mem-chips, and the silver ones are meant for SD-RAM DIMMs, but fit quite nicely here as well. Picture Stats: Views: 2128 Filesize: 154.52kB Height: 768 Width: 1024 Posted by: PaSha at August 13, 2005, 06:32:26 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| freqmax Posts:2179
| March 13, 2008, 05:27:13 AM How did you get those cooler fins to stick on the chips? |
| PaSha Posts:537
| August 17, 2005, 06:45:59 PM I bought the card new (DCE) so it is most likely the original one, unless ofcourse if the shop (or DCE) has tricked me... you never know :-D |
| Framiga Posts:4096 | August 17, 2005, 02:11:10 PM very welldone :-) Above all the blue one on the regulator. Have you replaced those orange SMD tantalium near the IC regulator (the 100µF IIRC) or its the original one. |
