| Inside my A4000T - misc boards | ||
 |
||
| Previous Image | Next Image | ||
|

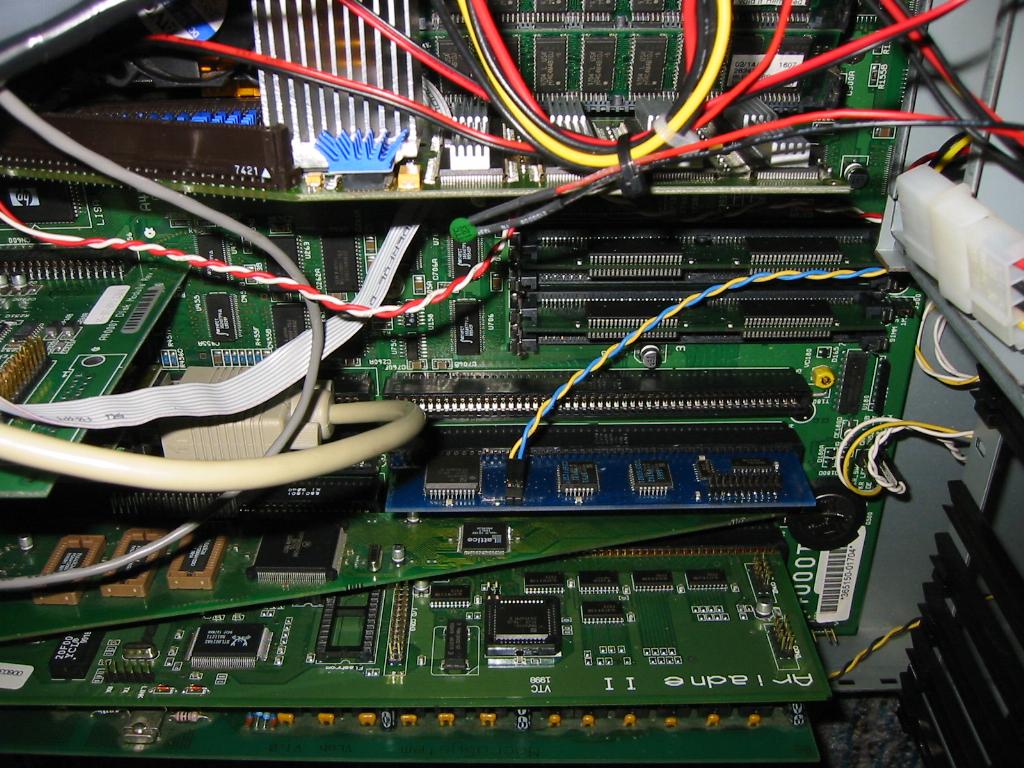

Description: From top to bottom: -Cybervision PPC, with a few extra heatsinks -The VGA cable on the left comes from my internally mounted external scandoubler -The little blue board is a KickFlash -The triangular one is my Delfina Plus soundcard -Ariadne II network card -And on the bottom, a VLab You can also see the coin cell battery socket I've installed, and on the disk-module I've installed a header for an external floppy connector, should I ever need one... Picture Stats: Views: 2121 Filesize: 166.48kB Height: 768 Width: 1024 Posted by: PaSha at August 13, 2005, 06:23:04 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| x56h34 Posts:2921 | August 15, 2005, 06:19:10 PM I've done some similar heatsink installation to my CVPPC card. It really helps as this card gets very hot. The only bad thing about it is that it becomes useless as far as A3000D installation goes (like if you were ever to sell it to an A3000D user, they wouldn't be able to fit it with all those heatsinks on the chips). |
