Case
Case
Previous Image | Next Image

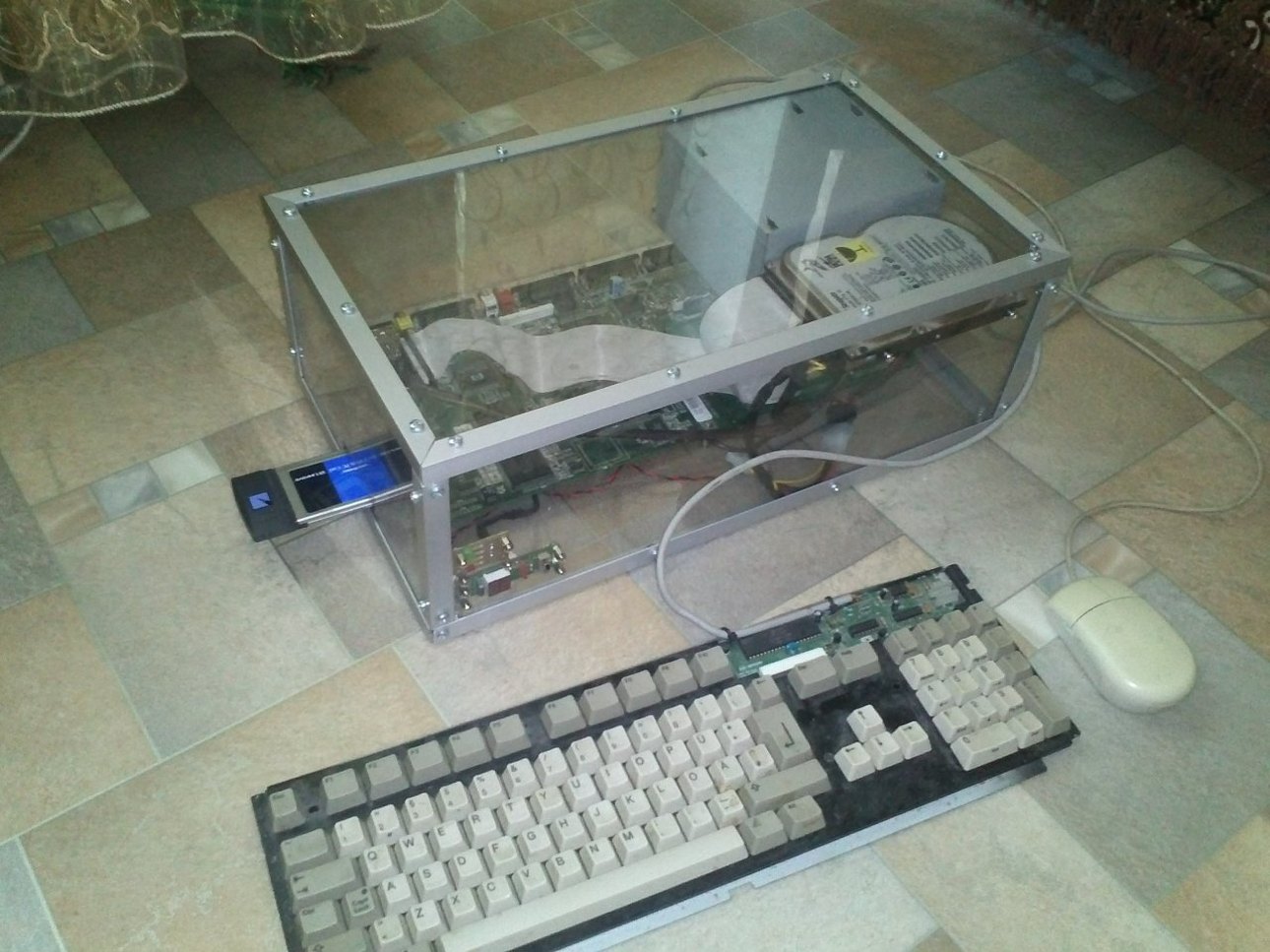

Description: 1. Motherboard Rev 2b
2. Blizzard 1230 IV (overcklock 60 Mhz) 64 mb memory
3. 200 w. Power supply, (old AT motherboard transferred in ATX case, all capacitor are replaced with the new), power connector it is changed to the such http://www.amiga.org/gallery/index.php?n=3617
4. Svideo and power led pcmcia mod.
5. Power, Hard, Floppy, Pcmcia mini led board.
6. Triple sensor temperatures rip it out PC case.
7. On the motherboard connector was soldered to it on the keyboard is connected to a500

20 gb hard, wifi...

p.s. Everything was done with his own hands, my wife is angry at the mention of the Amiga ...  Add a few fans, mediator, and .....
Picture Stats:
Views: 718
Filesize: 207.89kB
Height: 768 Width: 1024
Posted by: nedwil at May 02, 2012, 10:46:24 AM

0 Members and 1 Guest are viewing this picture.

Comments (1)

carvedeye
Posts:1559
September 11, 2013, 03:29:37 PM
Nice setup you have there, curious as to how you modded your keyboard to use a cable as I would love to do this as well.
