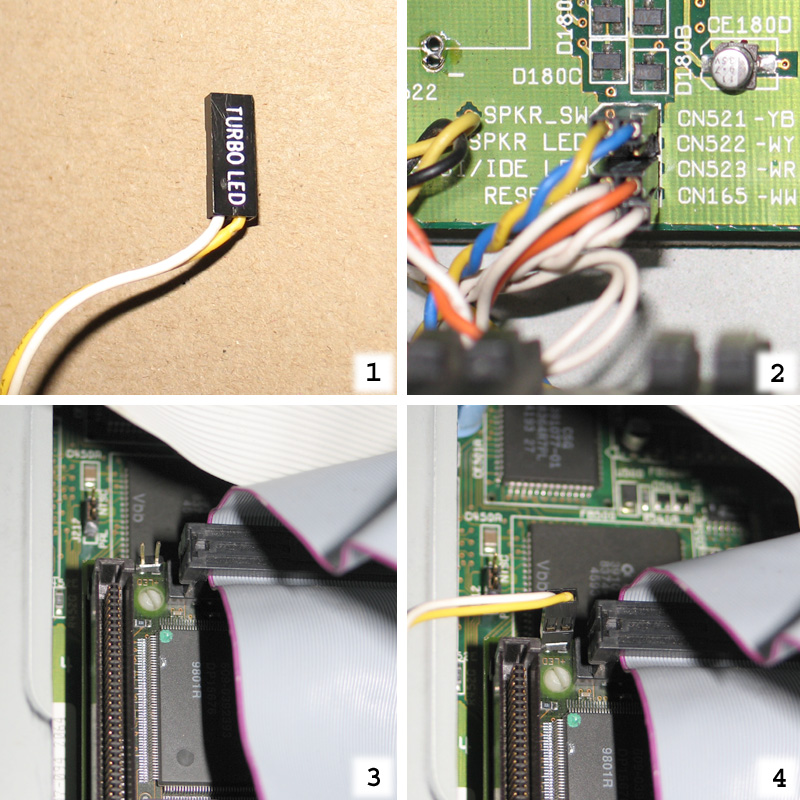

Description: The A4000T (the AT version in the Enlight case) has three LEDs on the front, and one of them is useless (the yellow 'turbo' LED). This LED is connected to the 'Turbo LED' plug (image 1) which is connected on the CN522 pins on the mobo (also labelled as SPKR LED). In image 2 you can see the exposed pins where the plug sits. Now, if you pull it out you can attach it to something much more useful, such as the connector for the SCSI device access that is located on the Cyberstorm PPC card (image 3). You connect it with the yellow wire orientated as in image 4. Now the 'Turbo' LED will indicate UW SCSI access. The 'Turbo' button retains its original function, which is toggling the internal speaker on or off. (Big wooooohoooo)
Picture Stats: Views: 638 Filesize: 272.14kB Height: 768 Width: 1024 Posted by: X-ray at June 12, 2009, 10:23:38 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| orange Posts:2794 | April 18, 2006, 07:19:37 PM @Coolit if all else fails, you could probably attach led directly onto HDD, most SCSI HDDs have extra pins for LED.. |
| Dr_Righteous Posts:1345 | December 29, 2005, 02:46:32 AM ROFLMAO!!! You mean to tell me they went through the trouble of putting a speaker switch and LED position on the motherboard just for using the turbo switch and LED?! Now THAT is just funny! (Tho I do have to admit, having a switch for the speaker is a good idea) I do have the Power LED for my A4k attached to my HC+8 tho. |
| X-ray Posts:4370
| August 30, 2005, 07:57:53 AM @ Coolit I don't know...I have never had a towered 1200 or a Blizzard card. |
| Coolit Posts:267
| August 30, 2005, 12:41:48 AM A good idea and far better use of that LED, I want to do something like this on my tower, any idea if it's possible with a Blizzard scsi kit? I don't think theres anywhere to take a feed from it though:( |
